Transformer Oil Filtration

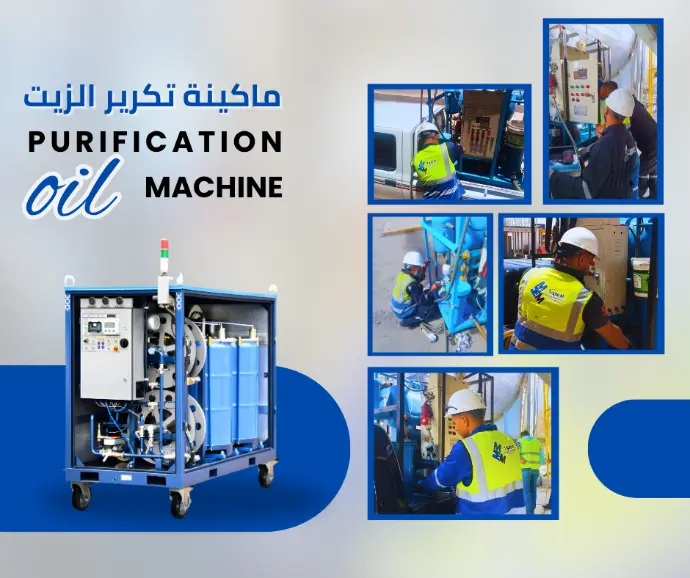

1- Oil purification machine
There
is different power flow rate
- 1200 L/hr
- 3000 L/hr
- 6000 L/hr
- 9000 L/hr
- 12000 L/hr
2- Vacuum machine for Transformer Installation Oil Filling
3- Injection nitrogen gas in transformer by
special equipment

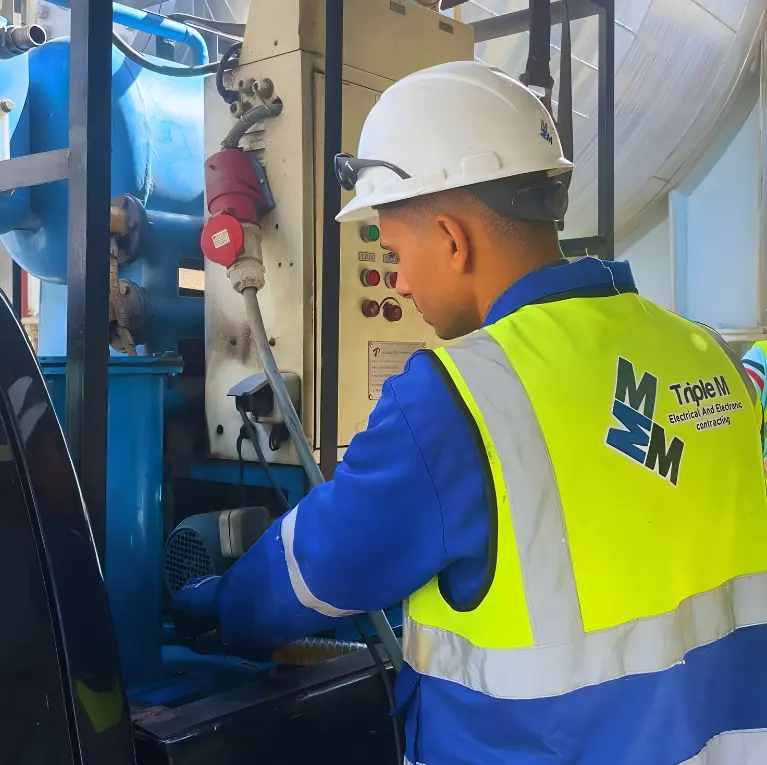

Purification
- Impurity Removal: Cleanses the oil by removing impurities and contaminants, enhancing the oil's insulation properties.
- Breakdown Voltage Improvement: Treats and improves the low dielectric breakdown voltage of the oil, ensuring optimal electrical insulation.
- Reduction of Dissolved Gases: Reduces the concentration of dissolved gases within the oil, which contributes to the prevention of internal faults in the transformer.
- Vacuum System for Transformer Installation: Utilizes a vacuum system during the installation of transformers to eliminate air and moisture, ensuring a clean and controlled internal environment.
- Portable Transformer Oil Filtration Machine: This machine is lightweight, portable, and can be used both indoors and outdoors, providing operational flexibility in various environments.
- Multi-Stage Precision Filtration System: Employs a multi-stage filtration process for superior filtration quality, enhancing oil purity.
- Micro particle Contaminant Removal: Uses advanced technology to remove contaminants at the molecular level, filtering particles as small as 1 micrometer.
Analysis
Chemical Analysis for Transformer Oil
- Color and visual
- Sludge replace with impurity
- Density 15.5M
- Moisture Content
- Acid Number
- Flash Point
- Dielectric Strength (Breakdown Voltage)
- Viscosity Kinematic
- Interfacial Tension (IFT)
- Power Factor
- Cupper corrosion
- Furan
Dissolved Gas Analysis for Transformer Oil
- Hydrogen (H2)·
- Oxygen (O2)
- Nitrogen (N2)
- Carbon Dioxide (CO2)
- Ethylene (C2H4)
- Ethane (C2H6)
- Acetylene (C2H2)
- Propane (C3H8)
- Propylene (C3H6)
- Methane (CH4)
- Carbon Monoxide (CO)
Contact Us Now To Get
Analysis Transformer-Oil Service
Supply
Supply Shell Diala Electrical Insulation Oil (S4 ZX-l)
- Shell Diala is the safest way to operate transformers and the highest efficiency for the electrical insulation and cooling system to remove heat from the transformer during its operation period.
- It has a high ability to resist electrical breakdown and has strong insulation
- It has a moderate viscosity and a high flash point so that the oil does not ignite easily
- Chemically stable and does not decompose under operational conditions
- The oil prevents chemical reactions from occurring in the internal parts of the transformer, such as oxidation
- The oil relies on gas-to-liquids technology to meet the specific requirements imposed by small size, high voltage, and increased loads Thanks to enhanced protection, long oil life and high system efficiency according to approved standard specifications to achieve the highest levels of required performance
