Power Factor Correction (PFC) Panels improve electrical system efficiency by maintaining the power factor near unity through automatic control of capacitor banks.
They are commonly used factories, workshops, HVAC systems, and pumping stations.
Main components: MCCB or MCB, APFC Relay, Capacitor Banks, Contactors, Fuses, Busbars, and a Painted Metal Enclosure.
Motor Control Panels are used to control and protect electric motors in industrial and commercial applications. They centralize motor operation, monitoring, and protection to ensure efficient performance and safe operation.
[5:27 pm, 27/11/2025] Triple M: Manufacturing plants, HVAC systems, water treatment stations, and pumping systems.
[5:27 pm, 27/11/2025] Triple M: Main Components: Circuit Breakers, Contactors,
Soft Starter Panels are control panels designed to start electric motors smoothly by gradually increasing the voltage, reducing mechanical and electrical stress during startup.
Used in water pumps, HVAC systems, compressors, conveyors, and heavy industrial machines.
Main Components: Soft Starter Unit, Bypass Contactor, Bypass Contactor, Overload Relay, Control Components, Cooling System.

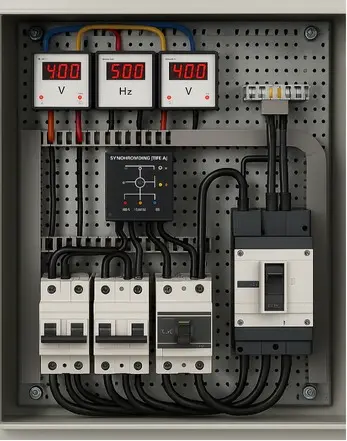

Synchronization Panels are used to synchronize multiple power sources such as generators or transformers, ensuring balanced and stable power distribution.
They are commonly used power stations, generator rooms, factories, and data centers.
Main components: MCCB/ACB, Synchronizing Relay or Controller, Voltage & Frequency Meters, CTs/PTs, Control Relays, Busbars, and Metal Enclosure.

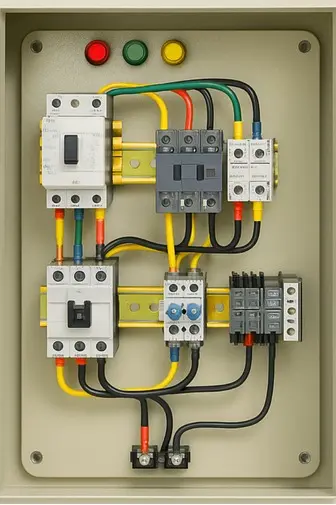

Direct On-Line (DOL) panels are used to operate small and medium electric motors directly from the power supply without reducing the starting current.
They are used in electric pumps and irrigation systems, ventilation and air conditioning systems, simple production lines, and small elevators and hoists.
Main Circuit Breaker (MCCB or MCB) – Contactor – Thermal Overload Relay – Start/Stop Push Buttons – LED Indicators – Additional Protection Relays – Copper Busbars and Wiring – Painted Metal Enclosure.

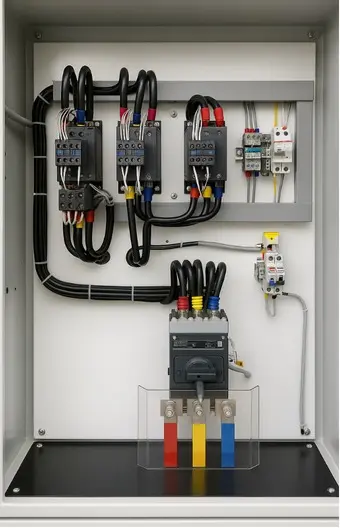

Star/Delta Panels are used to operate medium and large electric motors by reducing the starting current through a star-to-delta connection sequence. This method helps protect motors and electrical networks from high inrush currents during startup.
They are commonly used in water pumping stations, air handling units, compressors, conveyor systems, and large industrial machinery.
Main components include the main circuit breaker, contactors, timer relay, overload relay, control relays, push buttons, LED indicators, copper busbars, wiring, and a painted metal enclosure.
Local sheet metal manufacturing panels are electrical or mechanical panels manufactured using sheet metal (metal) panels, and are used in a wide range of industrial and commercial applications. They are designed and manufactured locally to meet the needs of factories or various projects at competitive prices compared to imported ones such as instrument panels, risers and all different sizes of panels

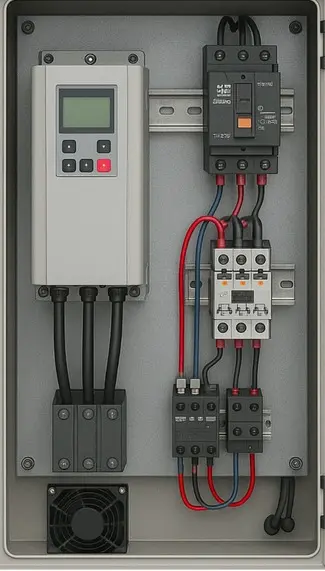

VFD (Variable Frequency Drive) Panels are control panels used to regulate the speed and direction of electric motors by varying the frequency and voltage of the power supply. They improve energy efficiency, process control, and motor protection.
Used in water pumping stations, HVAC systems, conveyors, fans, and industrial machinery requiring speed control.
Main Components: VFD Unit (Drive), Input MCCB / Circuit Breaker, Input MCCB / Circuit Breaker, Output Contactor (Optional), EMI / Line Filter, Overload Relay, Cooling System, Control Circuit.
Control Panels manage and control electrical systems in industrial and commercial applications, centralizing operation and protection to ensure efficient and safe performance.
They are commonly used manufacturing lines, HVAC systems, water treatment plants, and building management systems.
Main components: MCCB/MCB, Contactors, Relays, Timers, PLC or HMI (if required), Push Buttons, Indicators, Busbars, and a Metal Enclosure.

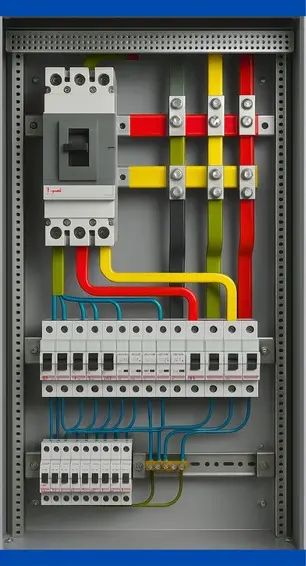

Low Voltage (LV) Panels distribute and control electrical power up to 1000V AC, serving as the main point for safe and efficient power distribution in industrial, commercial, and infrastructure facilities.
They are commonly used main distribution boards (MDBs), sub-main distribution boards (SMDBs), motor control centers (MCCs), and power distribution systems in buildings and plants.
Main components: Incoming and Outgoing MCCBs or ACBs, Busbars, Protection Relays, Meters (for voltage, current, power), Control Relays, Indicators, and a Metal Enclosure.
Pillars & Coffrets are outdoor enclosures for low-voltage power distribution, designed to safely supply and protect electrical networks such as street lighting and public utilities from environmental conditions.
They are commonly used street lighting networks, residential compounds, outdoor installations, and public service areas.
Main components: Circuit Breakers, Fuses, Contactors, Terminal Blocks, Busbars, and Weatherproof Enclosures made of metal or reinforced polyester.
Protection Panels safeguard electrical systems from faults like overloads, short circuits, and voltage fluctuations by monitoring the network and isolating faulty sections to maintain stability and safety.
They are commonly used substations, distribution networks, industrial plants, and power generation systems.
Main components: MCCB/MCB, Protection Relays (Overcurrent, Earth Fault, and Under/Over Voltage), CTs, PTs, Control Relays, Indicators, Busbars, and a Metal Enclosure.
